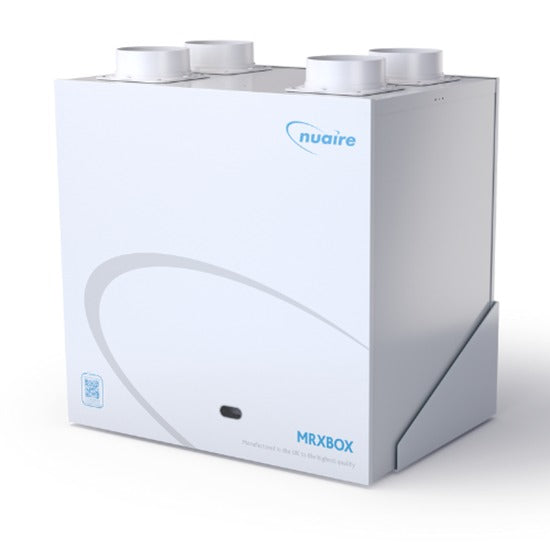

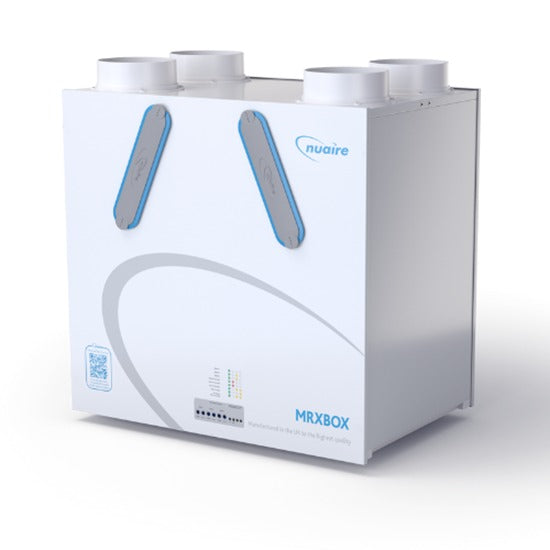

Part of Nuaire's Mechanical Ventilation with Heat Recovery (MVHR) range, suitable for medium-sized new build properties.
The MRXBOXAB-ECO5 unit has been designed with automatic 100% bypass as listed on the SAP Product Characteristics Database (PCDB).

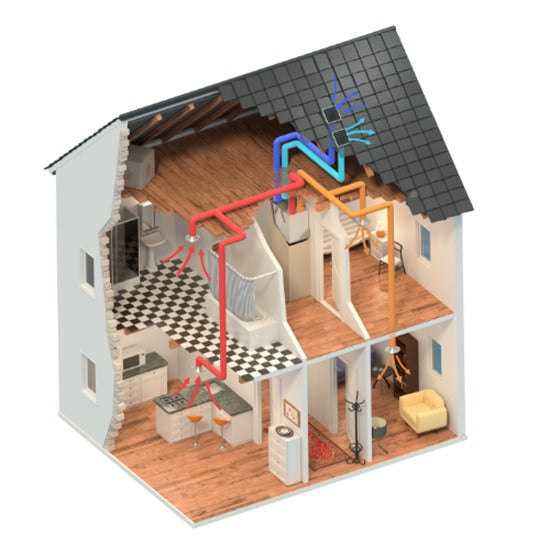

The units operate by continuously extracting moisture-laden air from ‘wet’ rooms within the property and at the same time drawing in fresh supply air from outside. The heat from the extracted stale air is recovered via a heat exchanger inside the heat recovery unit which becomes tempered then filtered before supplying into the habitable rooms, creating comfortable and well-ventilated homes.
The heat exchanger block within these units can recover up to 95% of the normally wasted heat. The two independent fans have full-speed control for background and boost ventilation rates.
The MRXBOXAB-ECO5 has a summer bypass function. This feature activates automatically and attempts to maintain the home at a comfortable temperature. For example, if the outside temperature is warmer than the inside, the unit will continue to draw air through the heat exchanger. If the house is warmer than outside, the unit will bypass the heat exchanger and draw air in directly from outside.
This size unit is suitable for ventilating kitchens and up to six wet rooms. It is also designed to be compatible with the latest generation of controls and sensors.

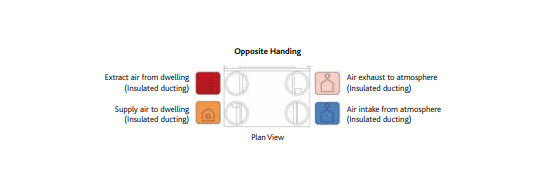

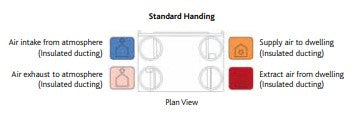

Standard and/Opposite hand Configuration
- Building Regulations – SAP eligible products, Part F and L Building Regulations compliant
- Compact – Lightweight and easy to install
- Fan controls – Designed for quick and easy commissioning
- Easily accessible filters from front cover – No tools required
- Constant quiet running fans – Ensuring occupant acceptability
- Integral frost protection
- Optional Humidistat Sensor – for automatic boost facility
- 2 Year Manufacturer Warranty – including Parts and Labour
