Louvred Grille With Flyscreen 125mm

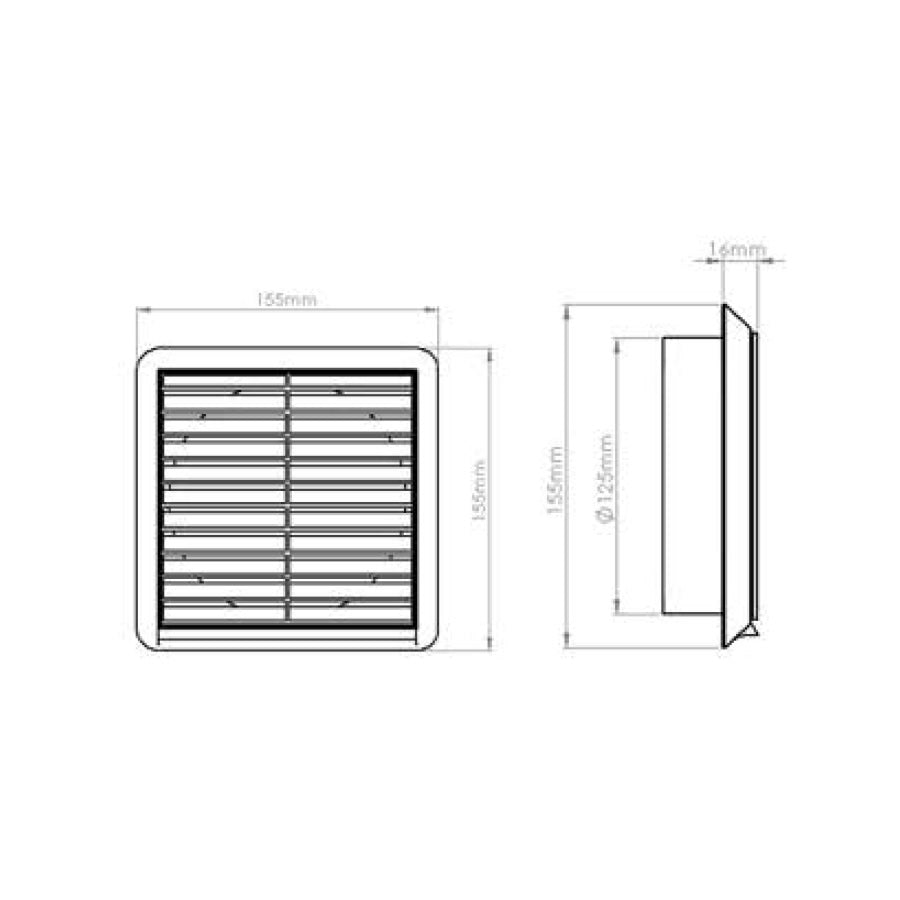

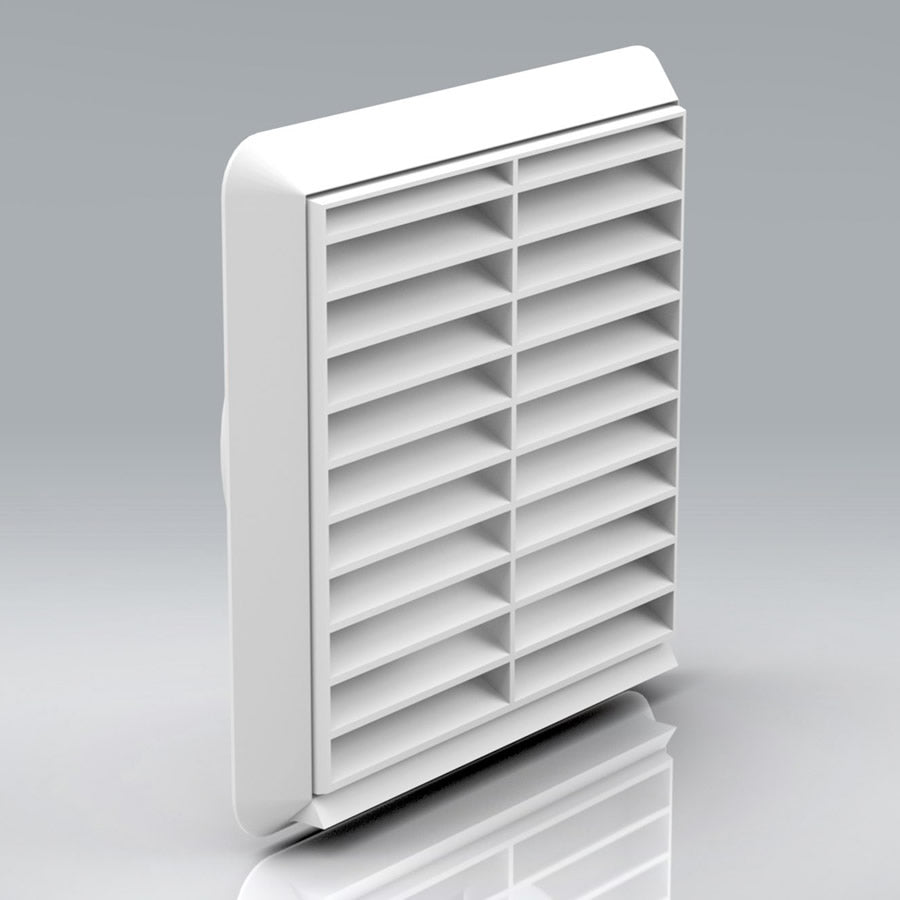

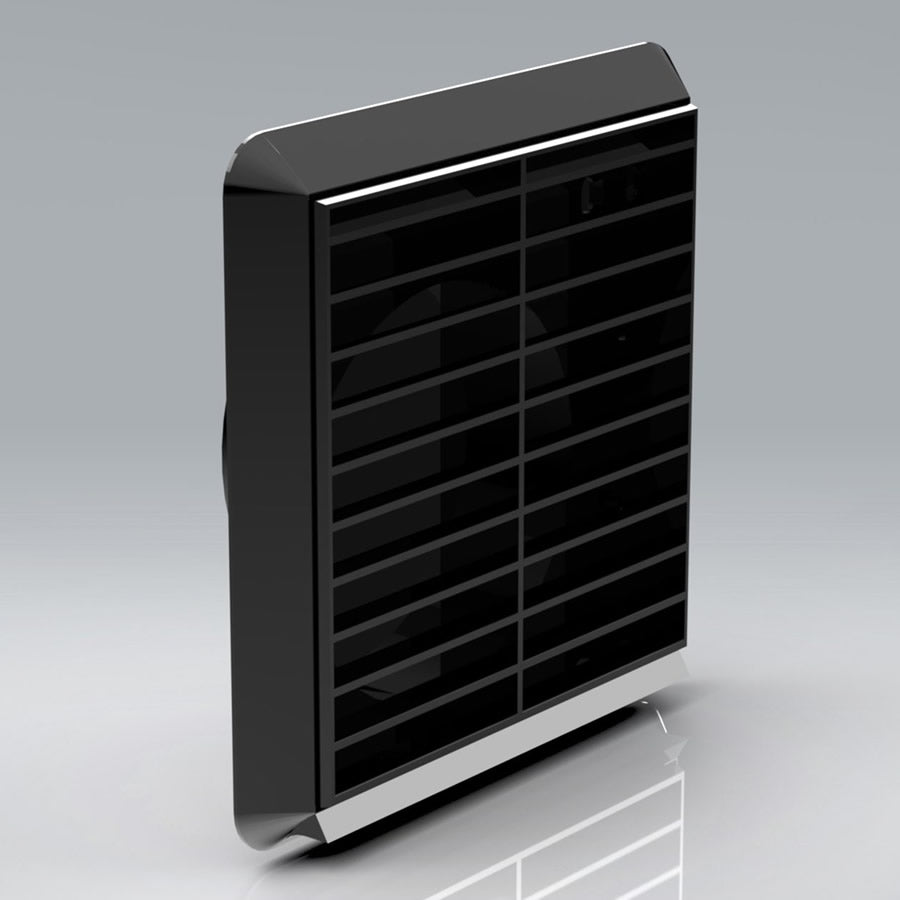

The VKC268F/S 125mm diameter louvred Grille Round Spigot with flyscreen is manufactured from high impact Polypropylene and has a minimum free area of 6,123mm² and has a male spigot that fits inside of the duct.

The VKC268F/S louvres are designed to prevent water ingress and where possible deflect low levels of wind pressure against the fan, against the water fan. Louvres should be installed pointing downwards.

VKC268F/S is manufactured in compliance with Domestic Plastic Ductwork Specification DW/154 and does meet UL94HB flammability standard.

VKC268F/S has been designed for use with Verplas System 125.
