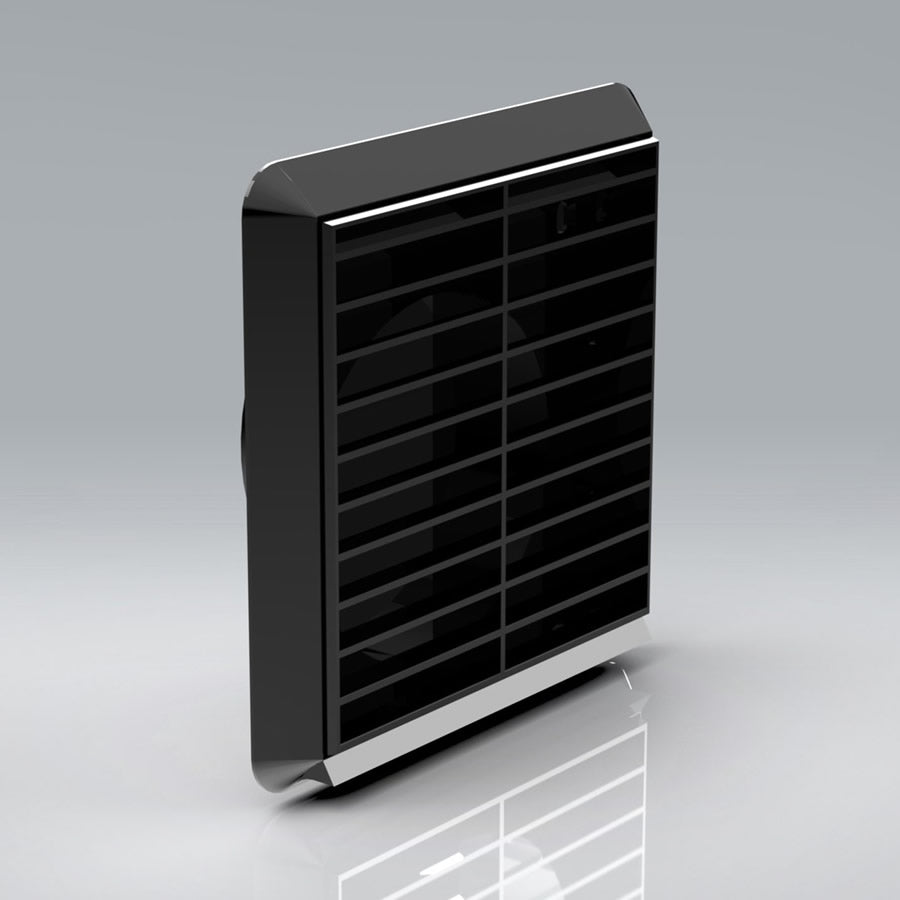

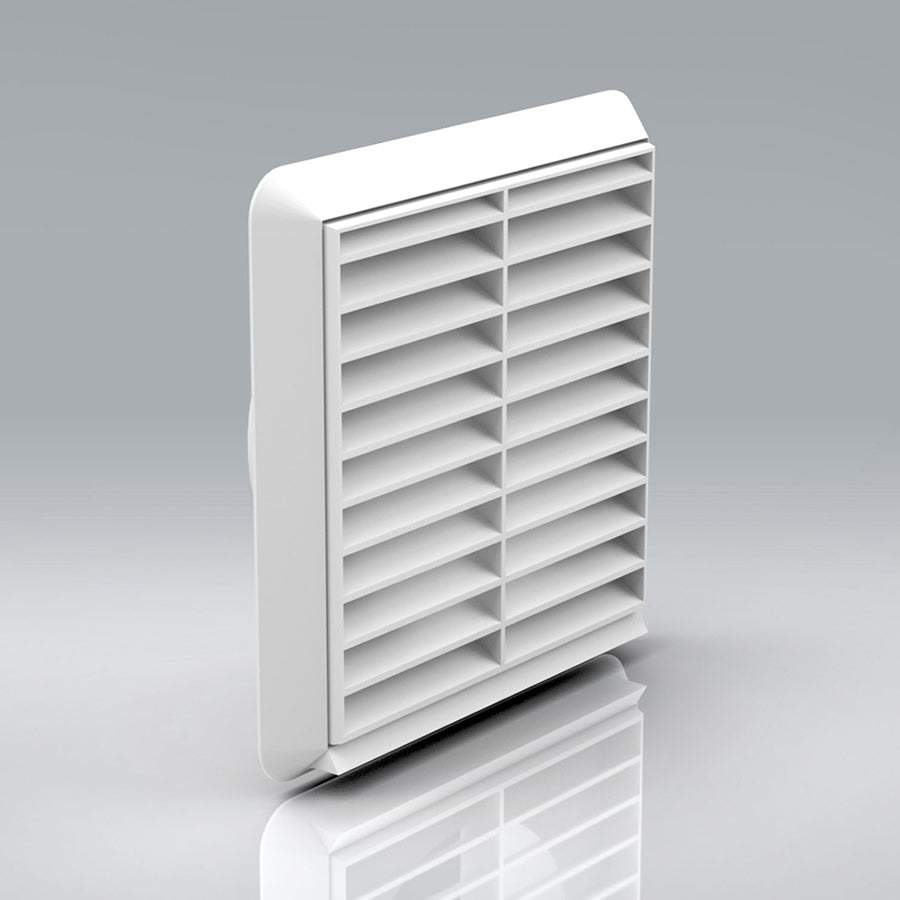

Louvred Grille With Flyscreen 100mm

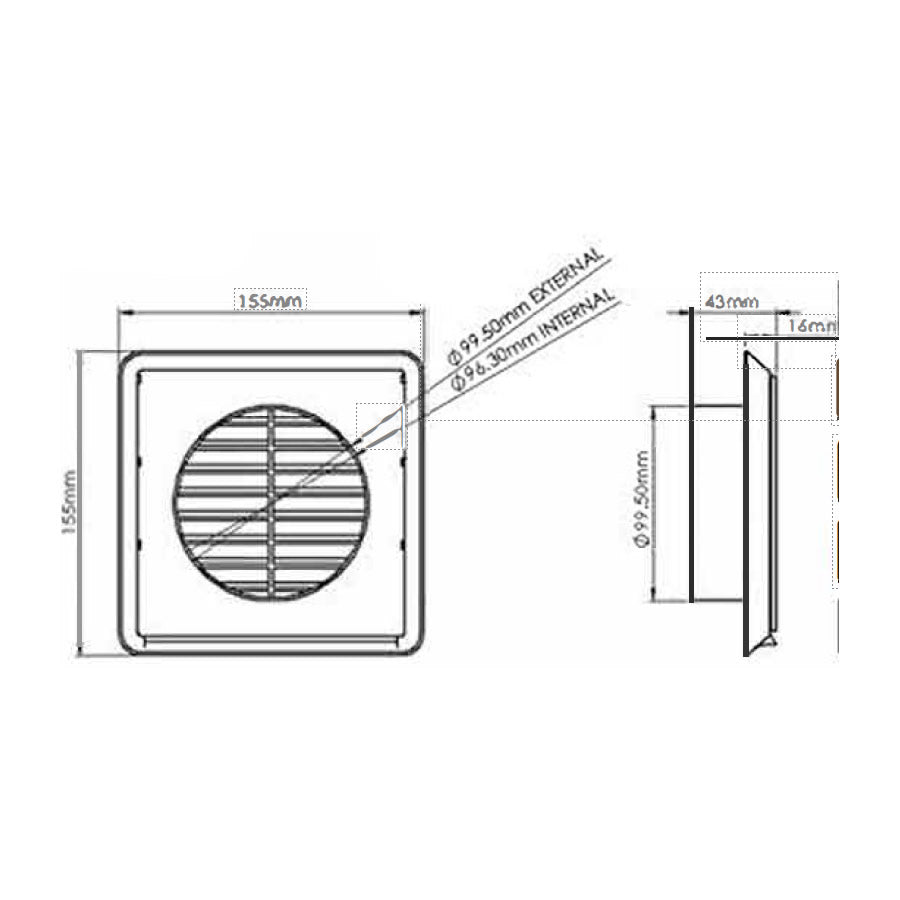

The VKC244 100mm diameter Louvred Grille Round Spigot is manufactured from Polypropylene and has a minimum free area of 7,283mm². It has a male spigot for connection inside of the System 100 duct.

The VKC244 Louvres are designed to prevent water ingress and where possible deflect low levels of wind pressure against the fan, against the water fan. The louvres should be installed pointing downwards.

VKC244 is manufactured in compliance with Domestic Plastic Ductwork Specification DW/154 and does meet UL94HB flammability standard.

VKC244 has been designed for use with Verplas System 100 Round.
